DESIGN
The traditional 5-star wheel is reimagined with our F5 model. We based this model on a classic form, but pivoted it around the no-center-cap concept to emphasize the off-road-ready appeal. Being hubcentric and incredibly lightweight at just over 18 lb, the F5 model sets new standards for form and function in wheel design.
ALL CANCELED ORDERS WILL BE CHARGED A 2.5% CREDIT CARD PROCESSING FEE!!!
SCS RESERVES THE RIGHT TO SELECT THE SHIPPING CARRIER AND/OR SHIPPING METHOD AT OUR SOLE DISCRETION.
TECH SPECS
| SIZE | BOLT PATTERN | SPACING/OFFSET |
CENTER BORE |
WEIGHT |
|---|---|---|---|---|
| 16 x 8.0 | 5 x 150 | 4.90"/+10 |
110.1 |
18.5 lb |
| 16 x 8.0 | 6 x 139.7 | 3.50"/-25 | 106.1 | 18.0 lb |
| 16 x 8.0 | 6 x 139.7 | 4.50"/+0 | 106.1 | 18.5 lb |
| 17 x 8.0 |
5 x 114.3 |
5.30"/+20 |
60.1 |
19.5 lb |
| 17 x 8.5 | 6 x 139.7 | 5.50"/+20 |
95.1 | 21.5 lb |
| 17 x 8.5 |
6 x 139.7 | 4.30"/-10 | 106.1 |
21.5 lb |
| 17 x 9.0 | 6 x 139.7 | 3.50"/-38 | 106.1 |
22.5 lb |
| 18 x 9.0 | 6 x 139.7 | 5.50"/+12 | 95.1 |
26.0 lb |
| 18 x 9.0 | 5 x 150 | 6.00"/+25 | 110.1 |
24.5 lb |
| Price: $245-330 USD |
| Construction: Flow Form |
| Hubcentric: Yes |
| Max load: 1620-2500 lb |
| NOTE: THE F5 IS A DIRECT FIT ON LOCKING/FREE WHEELING AND TOYOTA DRIVE FLANGE STYLE HUBS. DETERMINING FITMENT IS THE RESPONSIBILITY OF THE CUSTOMER. |
F5 GALLERY

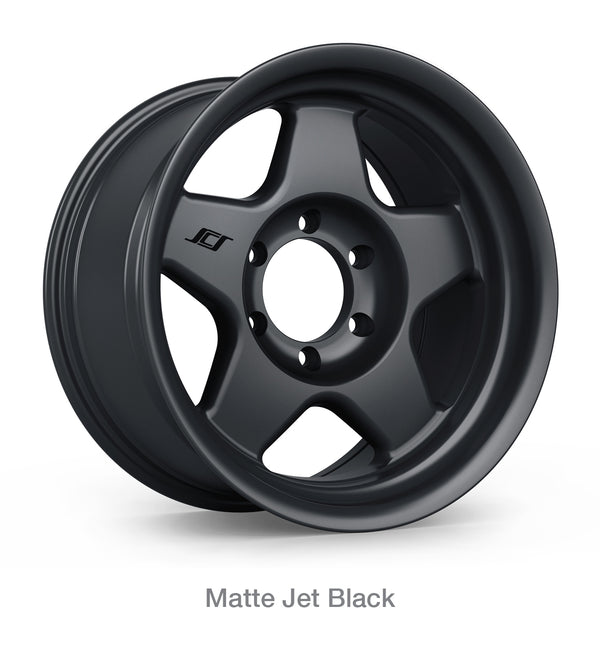

FINISHES
